Agilent Technologies (HP) 86061C/002/012/051/163/216

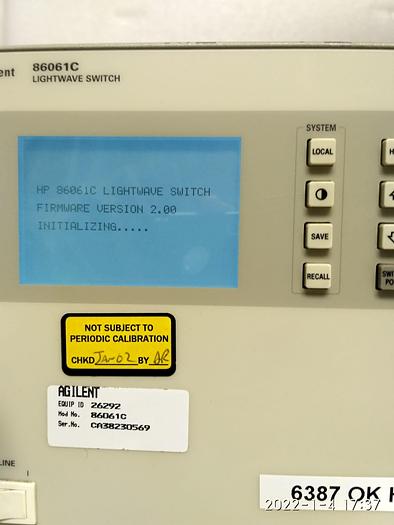

Agilent Technologies (HP) HP 86061C Lightwave Switch

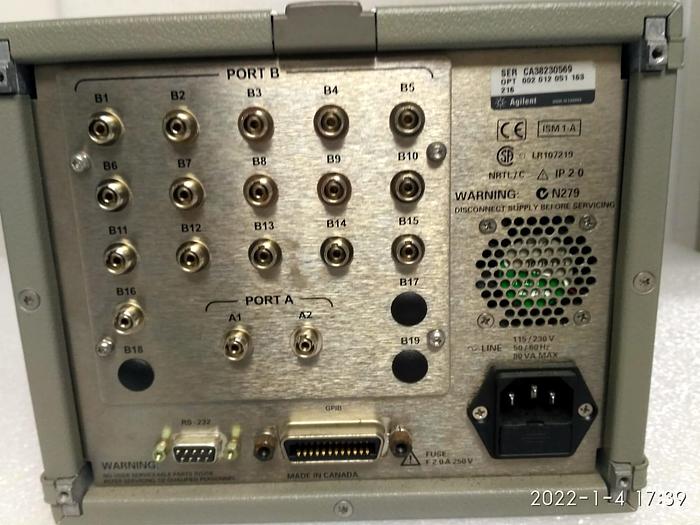

Agilent 86061C Lightwave Switch is mid-size switch in a half-width chassis, available with one or two input channels. It can accomodate from four to twelve output channels on the front panel and up to eighteen outputs on the rear panel. The 86060 Series Lightwave Switches are designed for 9/125 µm single-mode, as well as 62.5/125 and 50/125 µm multi-mode operation. Switching is bi-directional. The 1xN switching module is built around a precision stepper motor.

Agilent 86061C Features

• Improved performance due to temperature stabilization
• Multilayer software for controlling multiple switch configurations available
• Visual signal path display with easy-to-use manual interface
• Repeatable switching with 10 million cycle minimum life
• GPIB and RS-232 control
• SCPI-compatible commands

Agilent 86061C Available Config

• Option 002/012/051/163/216
