BK Precision / Sefram BK1693 Adjustable Switching DC Bench Power Supply 1-15V 60A

BK Precision / Sefram BK1693 Adjustable Switching DC Bench Power Supply 1-15V 60A
Contact us for price
Location:Hounslow, United Kingdom
or
Call +44 (0)20 8572 5599
Description

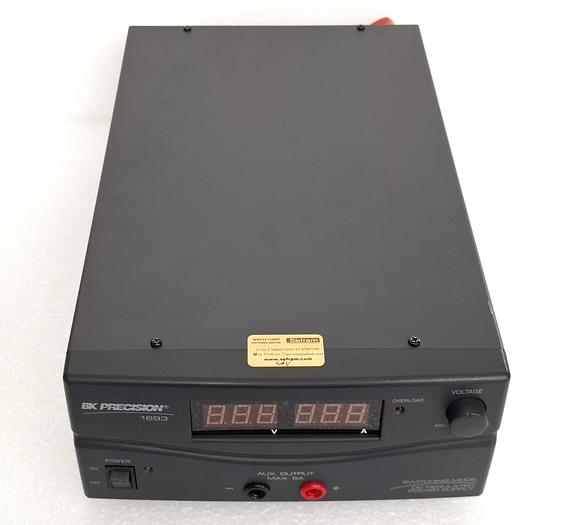

BK Precision / Sefram BK1693 Adjustable Switching DC Bench Power Supply, 1 Output, 1-15V, 60A

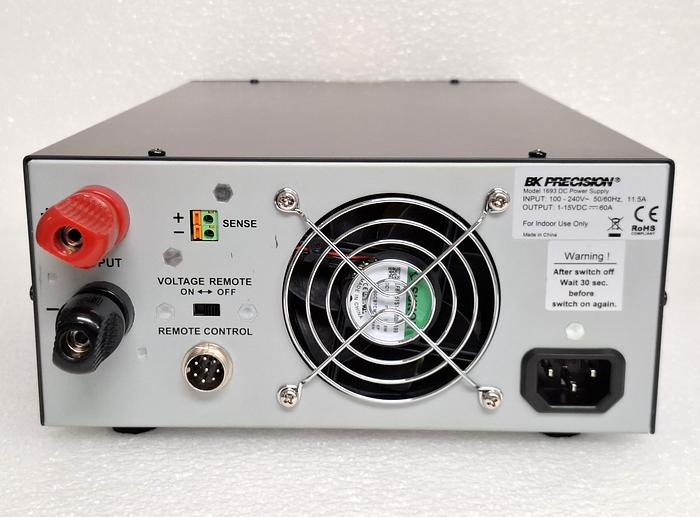

The BK1693 from B&K Precision is a high current switching DC power supply. This lightweight and compact device includes a remote sensing terminal to compensate for voltage drop across load leads. The output voltage level can also be externally controlled via an analogue remote control terminal. The bright red LED for overload/short circuit indication and green LED provide power on/off indication.

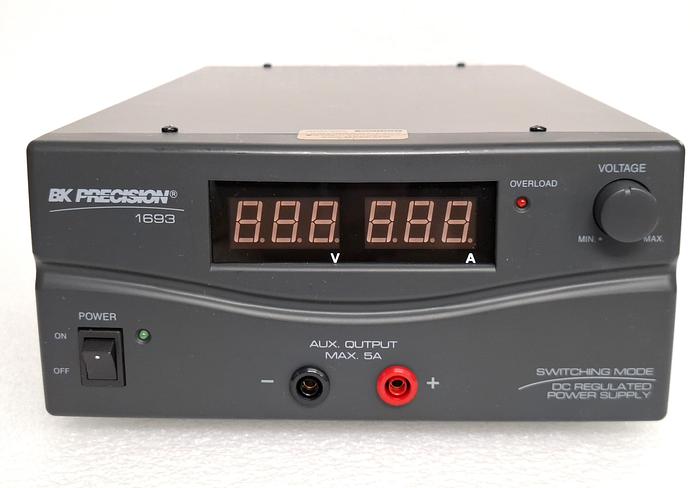

- Front panel auxiliary output, 3-digit LED displays
- Variable output voltage is 1 to 15V at 60A
- Rated auxiliary output current is 5A
- Current fold back circuitry with illuminated indicator prevents overloading power supply
- Protections: overtemperature, overvoltage, overload (constant current limiting), short circuit
- 40mVpp ripple and noise
- Operating temperature range from 32°F to 104°F (0°C to 40°C), ≤ 80% R.H
- 0.1% + 5mV load and 0.05% + 3mV line regulation
- Efficiency <gt/>85%
Specifications
Manufacturer | BK Precision / Sefram |
Model | BK1693 |
Condition | Used |
Stock Number | 7401 |
