GW Instek LCR-6020 High Precision LCR Meter 10Hz - 20kHz

GW Instek LCR-6020 Precision LCR Meter

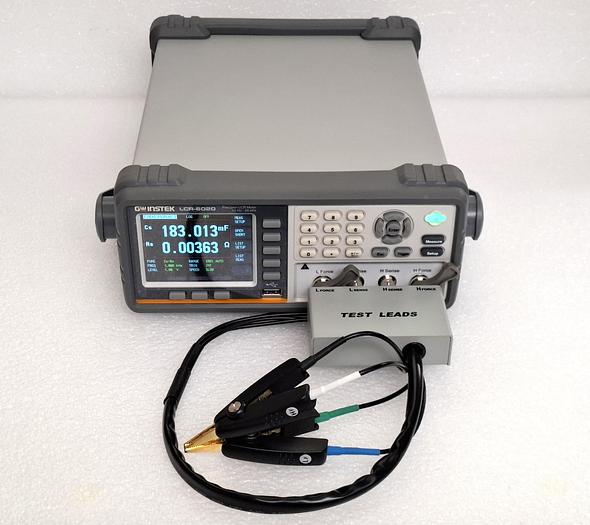

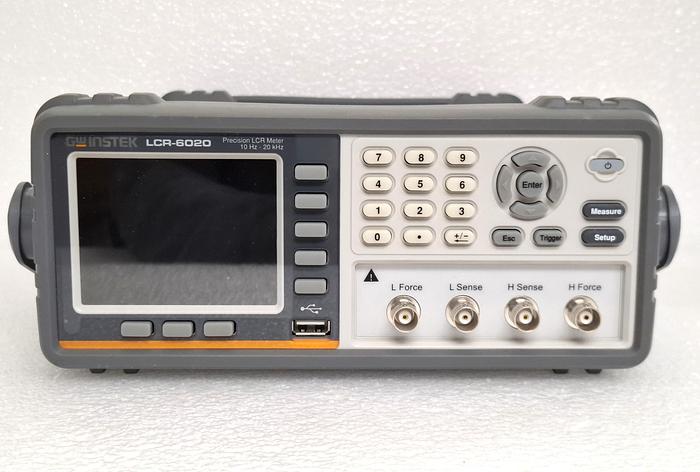

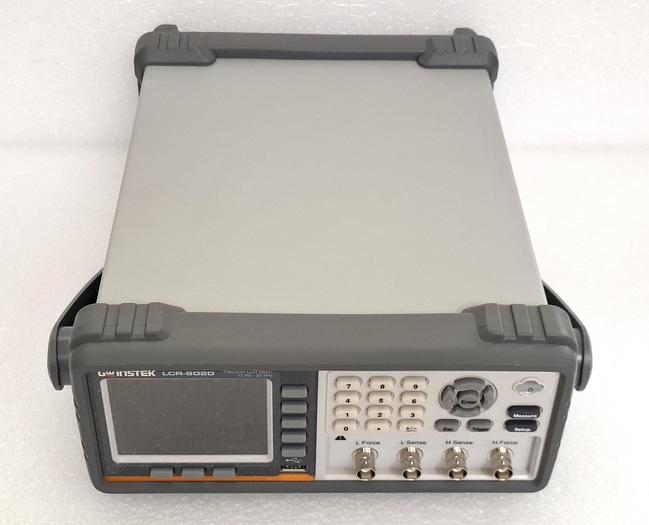

The GW Instek LCR-6020 is a 10Hz to 20KHz high precision LCR meter. The compact size design, 2U height and 1/2 rack and optimum space saver suitable for either bench top or system rack. The compacted LCR-6000 series with abundant features is absolutely the excellent tool for R&D, production test, IQC on implementing each test stages for passive components. It provides rich functionalities with the compact size and has 3.5inch colour LCD and features opulent display parameters. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters.

• Test Frequency : 10Hz to 20KHz

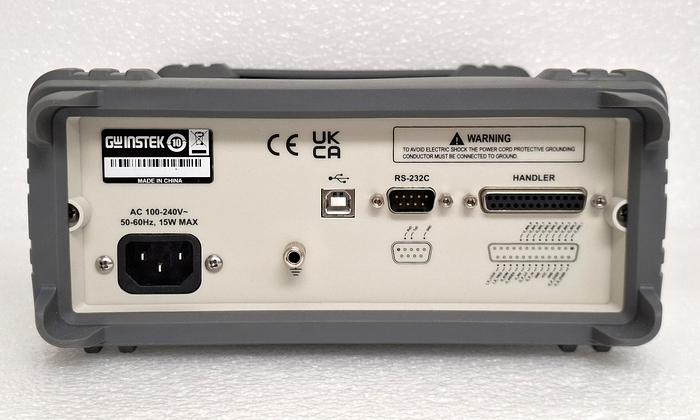

• RS232 (SCPI), handler, USB host interface
• AC power source of 90V to 250V, 50Hz to 60Hz, 30VA maximum

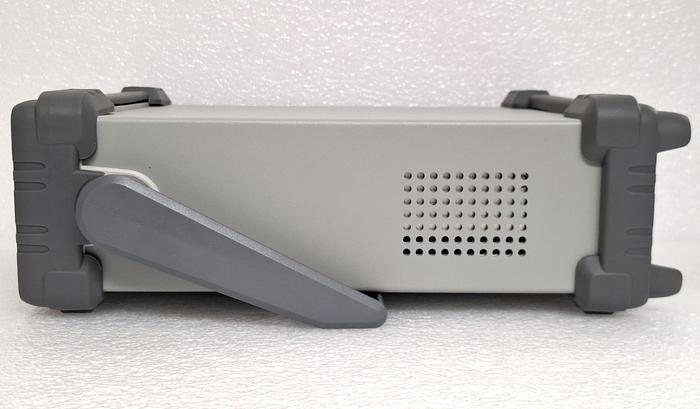

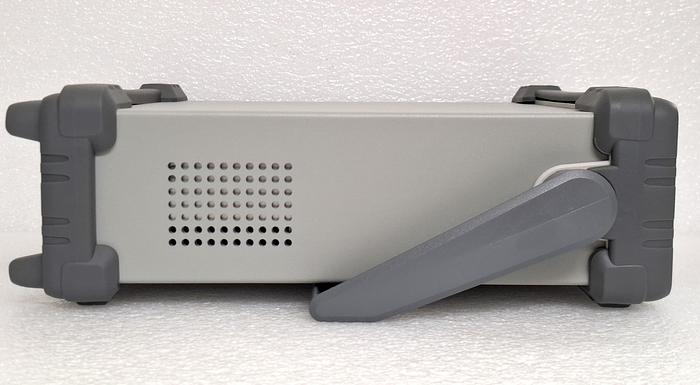

• Dimension of 265mm (W) x 107mm (H) x 312mm (D) and weight of 3Kg
• Basic accuracy of 0.05%, measuring speed up to 25ms (max)
• 16 major/secondary parameter measurement combinations and two additional monitoring parameters
• DCR measurement and internal DC bias voltage (±2.5V)
• Auto Level Control (ALC) function, BIN function provides 9BIN and 1AUX, totally 10 BIN
