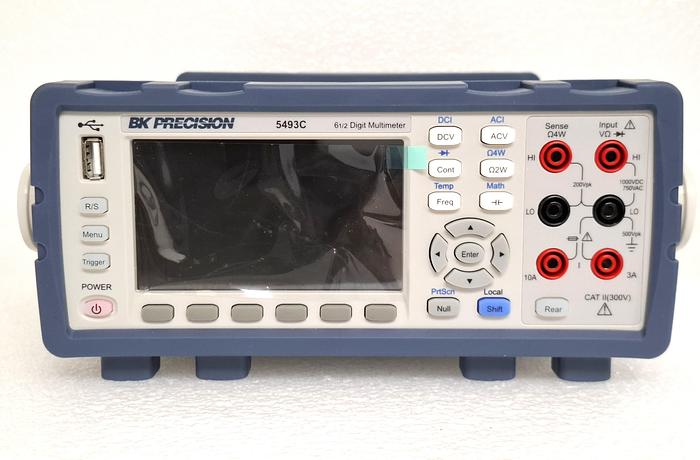

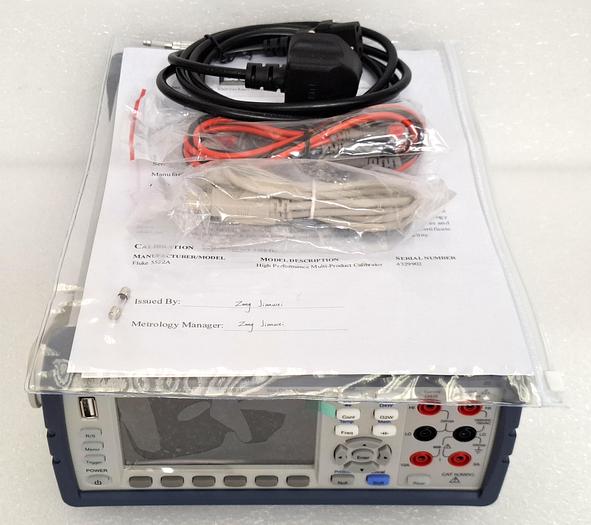

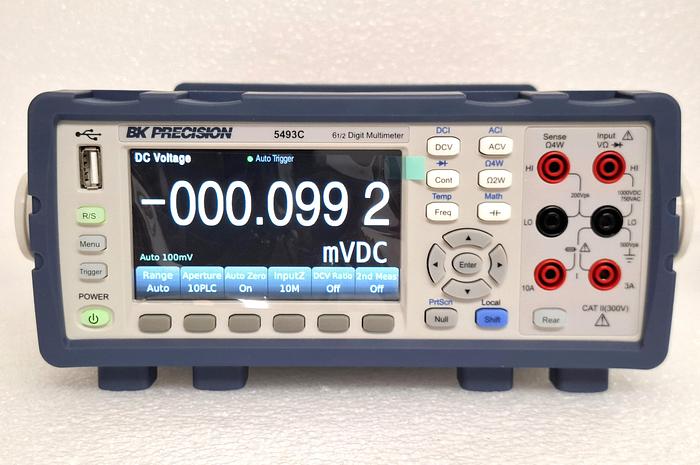

BK Precision / Sefram BK5493C 6.5 Digit Bench Digital Multimeter

BK Precision BK5493C Benchtop Digital Multimeter, 6.5 Digit

(10A, 750V, 100 Mohm, LAN, RS232, USB)

The 5490C series 6½ digit bench multimeters are designed for accuracy, repeatability and ease-of-use. A wide measurement range with speeds up to 1000 readings per second deliver stable measurement results quickly and accurately. These general purpose meters are well suited for demanding engineering, production and service applications. The multimeters feature simple and intuitive switching between the 12 measurement functions (DCV, ACV, DCI, ACI, 2 and 4-wire resistance, capacitance, frequency, diode, temperature, continuity test, DCV ratio) and display modes for a variety of test setups. The dual measurement feature enables the simultaneous display of 2 measurements. Additionally, limit mode and probe hold mode allow users to conveniently verify and compare readings For remote communication, this series includes standard LAN, USB (USBTMC-compliant) and RS232 interfaces. A LabVIEW driver is provided to simplify system integration and instrument control.

• 0.0035% (35ppm) DC voltage basic accuracy, rear input terminals for rack use
• High-contrast 4.3inch full colour LCD
• Bar meter, trend chart, histogram display modes (can be combined with statistics or math functions)
• Accurate frequency measurements to 1MHz
• Display min, max, peak-peak, average, standard deviation statistics simultaneously
• Real time clock/calendar to set/read time and date
• Temperature measurement capability using a Pt100 or 5Kohm thermistor probe
• 2-wire and 4-wire resistance measurements down to 10 ohm
• Internal storage buffer holds 10,000 readings, measurement speed up to 1000 readings
