Rohde & Schwarz (R&S) RTM-BNDL

Rohde & Schwarz (R&S) RTM-BNDL Oscilloscope

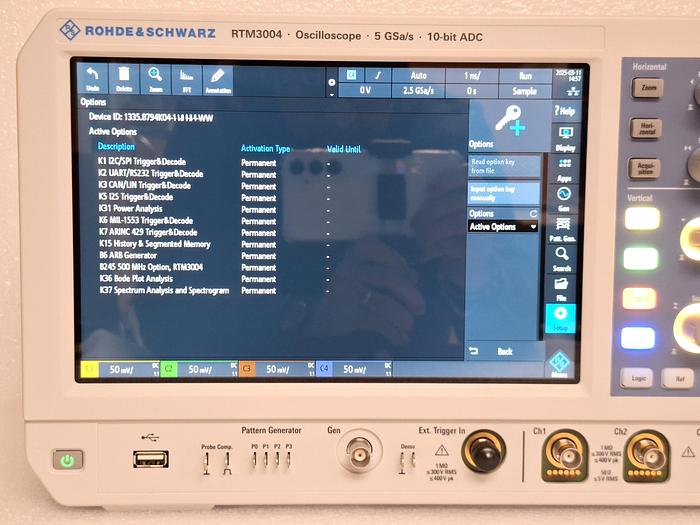

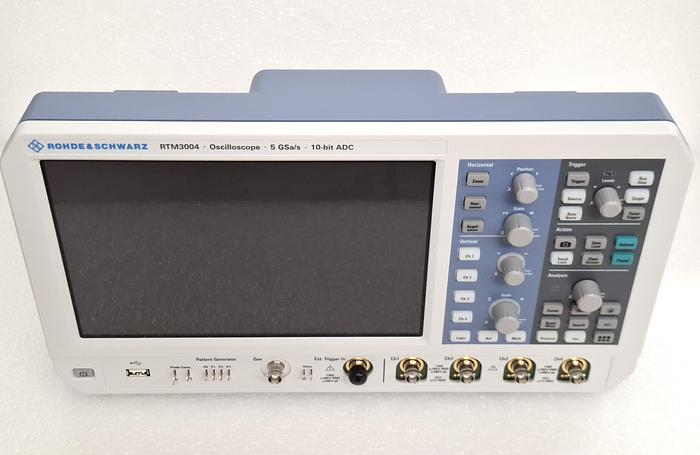

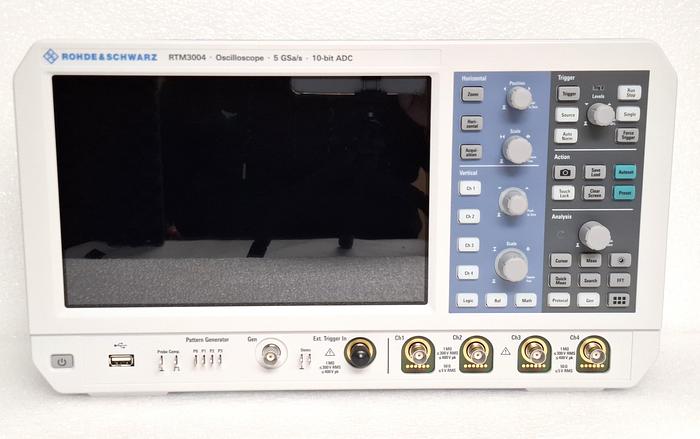

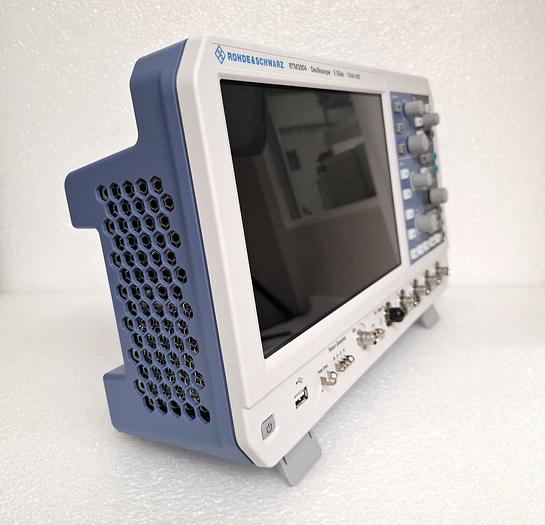

RTM-BNDL is an oscilloscope package consisting of RTM3004 Oscilloscope 4 channel 100MHz, RTM-B245 500MHz Bandwidth option and RTM-PK1 Application Bundle (RTC-B6 ARB GENERATOR, RTC-K1 I2C/SPI Trigger & Decode, RTC-K2 UART/RS232 Trigger & Decode, RTC-K3 CAN/LIN Trigger & Decode, RTM-K5 I2S Trigger & Decode, RTM-K6 MIL-1553 T&D, RTM-K7 ARINC 429 T&D, RTM-K15 History & Segmented Memory, RTM-K31 Power Analysis, RTM-K36 Bode Plot Analysis, RTM-K37 SPECTRUM AN./SPEC). RTM3004 Oscilloscope is a RTM3000 series 100MHz, 4 channel digital oscilloscope. It features 10.1" high resolution (1280 x 800 pixels) capacitive touchscreen TFT display with gesture support, 10bit ADC and 40Msample/channel standard, 80Msample interleaved memory depth.

• 400Msample segmented acquisition memory (optional)
• Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved
• Waveform update rate is 64000waveforms/s
• Minimum input sensitivity is 500µV/div
• 10 second boot time
• I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio (I²S), ARINC, MIL protocols (optional)
• Arbitrary waveform and 4bit pattern generator optional
• Standard digital voltmeter and trigger counter
• LAN, USB host/device, fast display over Ethernet connectivity
• Oscilloscope size is 390mm x 220mm x 152mm (W x H x D)
