Aim-TTI LD400P DC Electronic Load, LD Series, 400 W, Adjustable, 0 V, 80 V, 80 A
![Used Aim-TTI LD400P DC Electronic Load, LD Series, 400 W, Adjustable, 0 V, 80 V, 80 A](https://i.machineryhost.com/d8e1344e27a5b08cdfd5d027d9b8d6de/f6c7ca92bb581eac70e6f4688e631bd5/large-used-aim-tti-ld-400-p-dc-electronic-load-ld-series-400-w-adjustable-0-v-80-v-80-a.jpg)
Aim-TTI LD400P DC Electronic Load, LD Series, 400 W, Adjustable, 0 V, 80 V, 80 A
Contact us for price
Location:Hounslow, United Kingdom
orCall +44 (0)20 8572 5599
Description
DC Electronic Load, LD Series, 400 W, Adjustable, 0 V, 80 V, 80 A
The LD series Electronic Load is suitable for testing and characterising a wide variety of dc power sources. It can be used to investigate the behaviour of many different types of power source such as batteries and solar cells, as well as electronic power supply units. Its wide voltage/current range, multiple operating modes and built-in transient generator give it the versatility to offer test solutions from the design laboratory through to the component test area.
- Versatile solution for testing dc power sources
- Constant current, resistance, conductance, voltage (LD400 model only) and power modes
- Wide voltage and current range, 0 to 80V and 0 to 80A
- 400 watts continuous dissipation at 28°C (360W at 40)°C
- 600W short-term dissipation (up to 60 seconds)
- Low minimum operating voltage of 1V at 40A
- High resolution and accuracy for level setting
- Built-in transient generator with variable slew
- Current monitor output for waveform viewing
- Variable drop-out voltage for battery testing

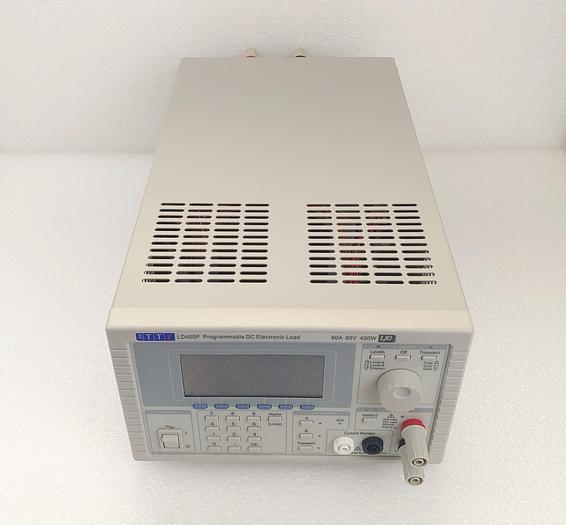

- High resolution backlit graphic LCD with soft key control
- Analogue remote control of levels and TTL control of on/off and transient switching

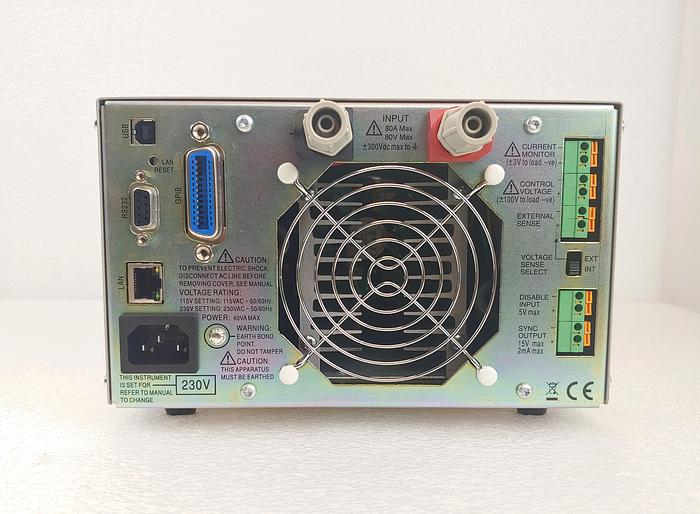

- Front and rear input terminals (front terminals 30A max.)
- Full bus control via USB, RS232 and LXI compliant LAN interfaces (P Models only)
Specifications
Manufacturer | Aim-TTI |
Model | LD400P |
Condition | Used |
Power Rating | 400W |
Operating Voltage Max | 80V |
Operating Current Max | 80A |
