Keithley DMM6500

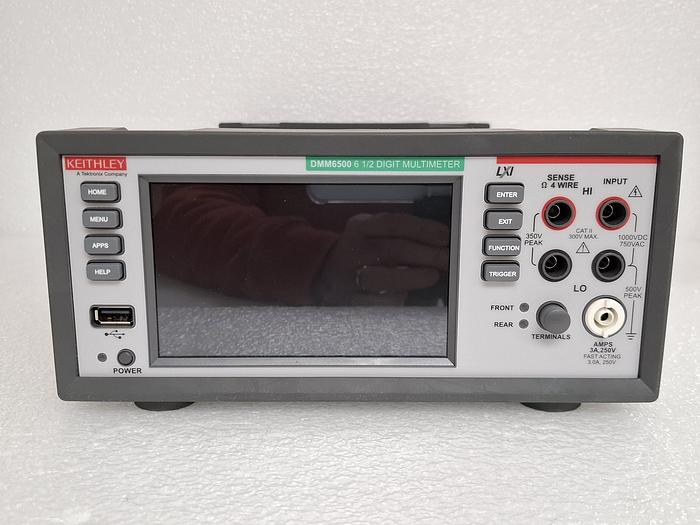

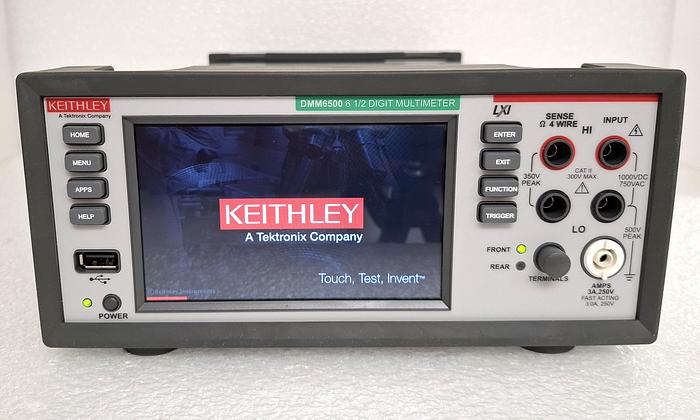

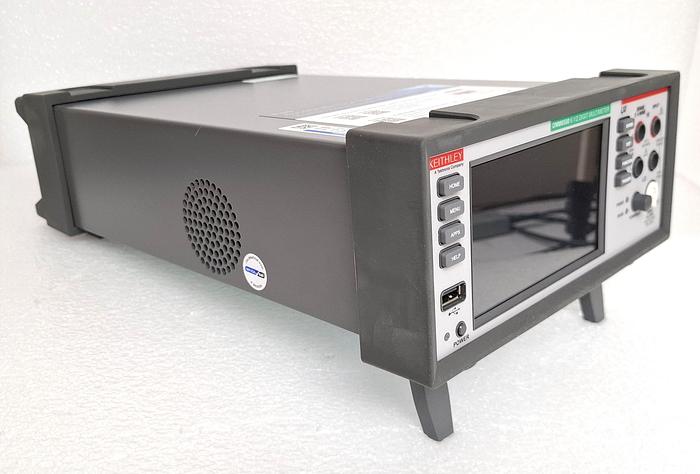

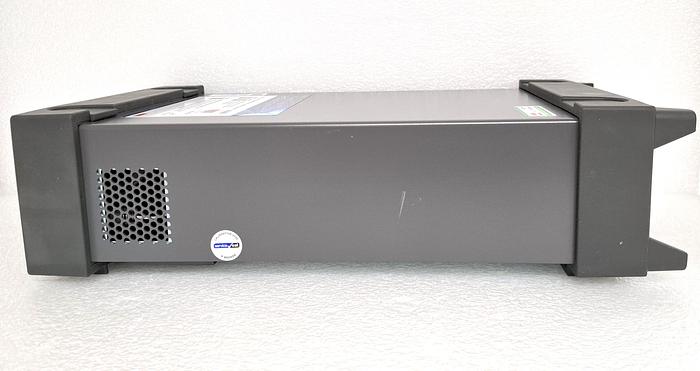

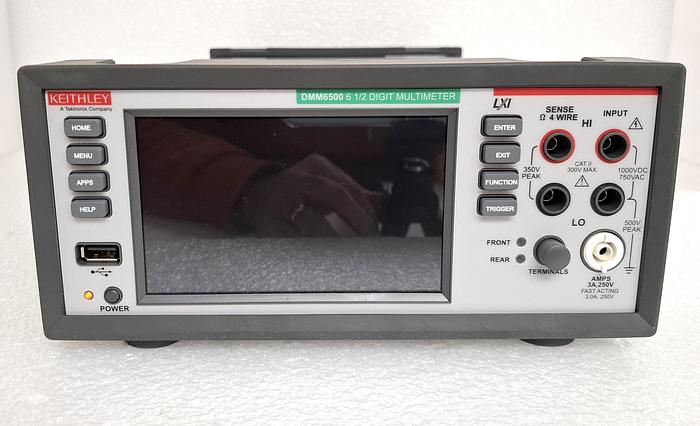

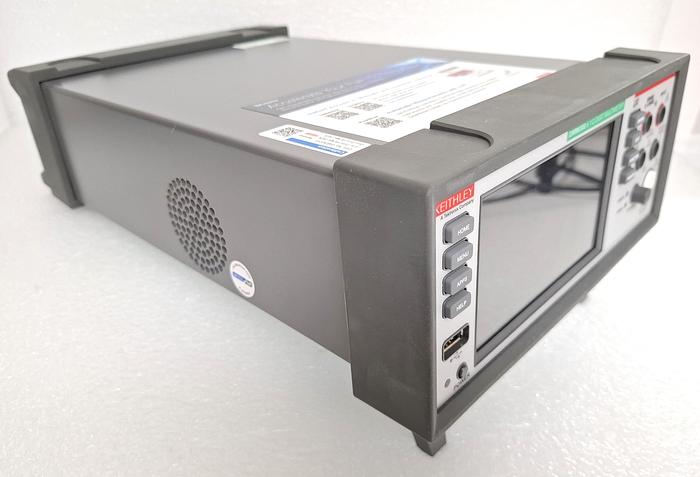

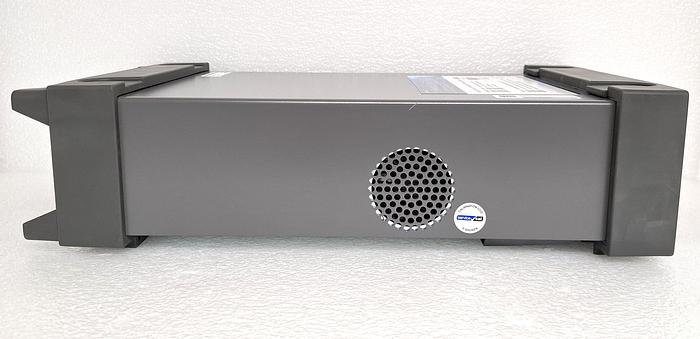

Keithley DMM6500 Digital Multimeter (6½ digit)

The Keithley DMM6500 is a 6½ digit broad purpose DMM enabling customers to debug, validate, and manufacture their end devices. It's 13 measurement functions including capacitance, temperature (RTD, thermistor and thermocouple), diode test with variable current sources and up to 1MS/sec digitizing are now included. The DMM superior analogue measurement performance delivers 25PPM basic DCV accuracy for one year and 30PPM for two years potentially allowing user to extend calibration cycles.

• Expanded measurement ranges include 10 pA to 10 A and 1 mOhm to 100 MOhm

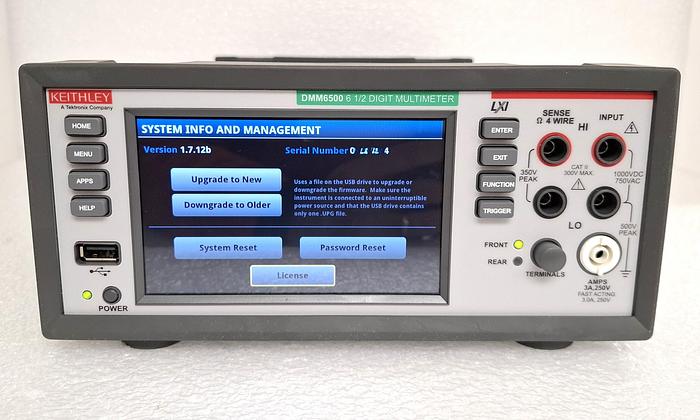

• 5 inch multi-touch capacitive touchscreen with graphical display
• Large internal memory: store up to 7million readings
• Language modes: SCPI, TSP® scripting, Keithley 2000 SCPI emulation, Keysight 34401A SCPI emulation
• Standard USB-TMC 2.0 and LXI/Ethernet communication interfaces
• USB host port for storing readings, instrument configurations and screen images
• Apps keys for quick access to customized programs, online HELP is just a button press away
• Visualise and analyse waveforms using adjustable cursors and statistics
• Optional user-installable communication interfaces including: GPIB, TSP-Link® and RS-232
• Lower swipe screen speeds up access to often-used features

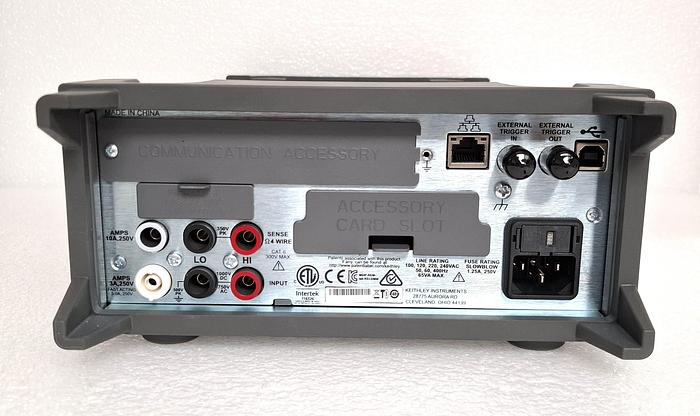

• Front/rear input selector button with LED to easily identify position
